Logo of MCN Distribution Ltd, a drylining and insulation supplier, with large maroon letters 'MCN' and smaller text underneath indicating the company's full name and services.

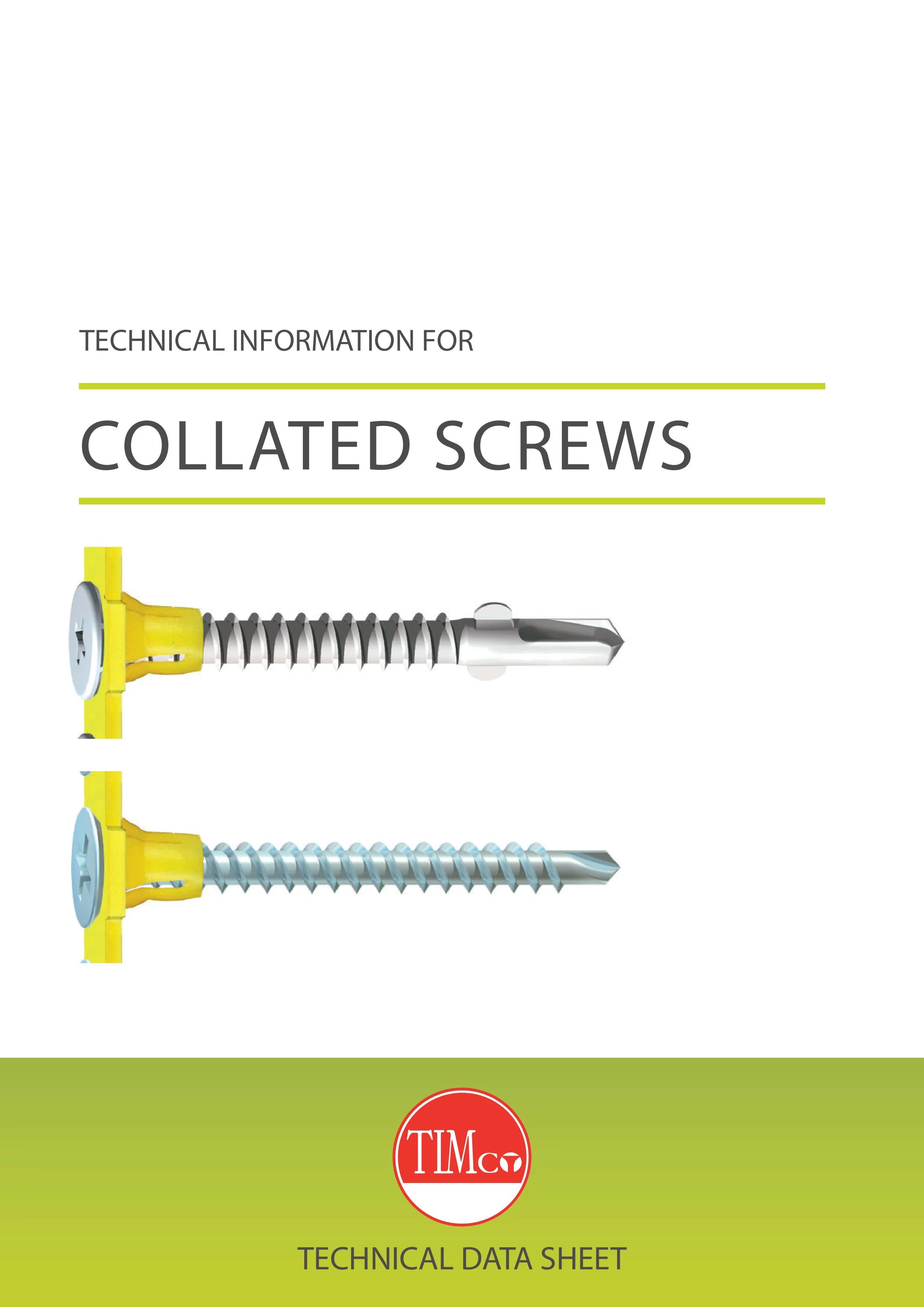

Technical data sheet cover for collated screws, featuring images of two types of screws with yellow screw guns attached.

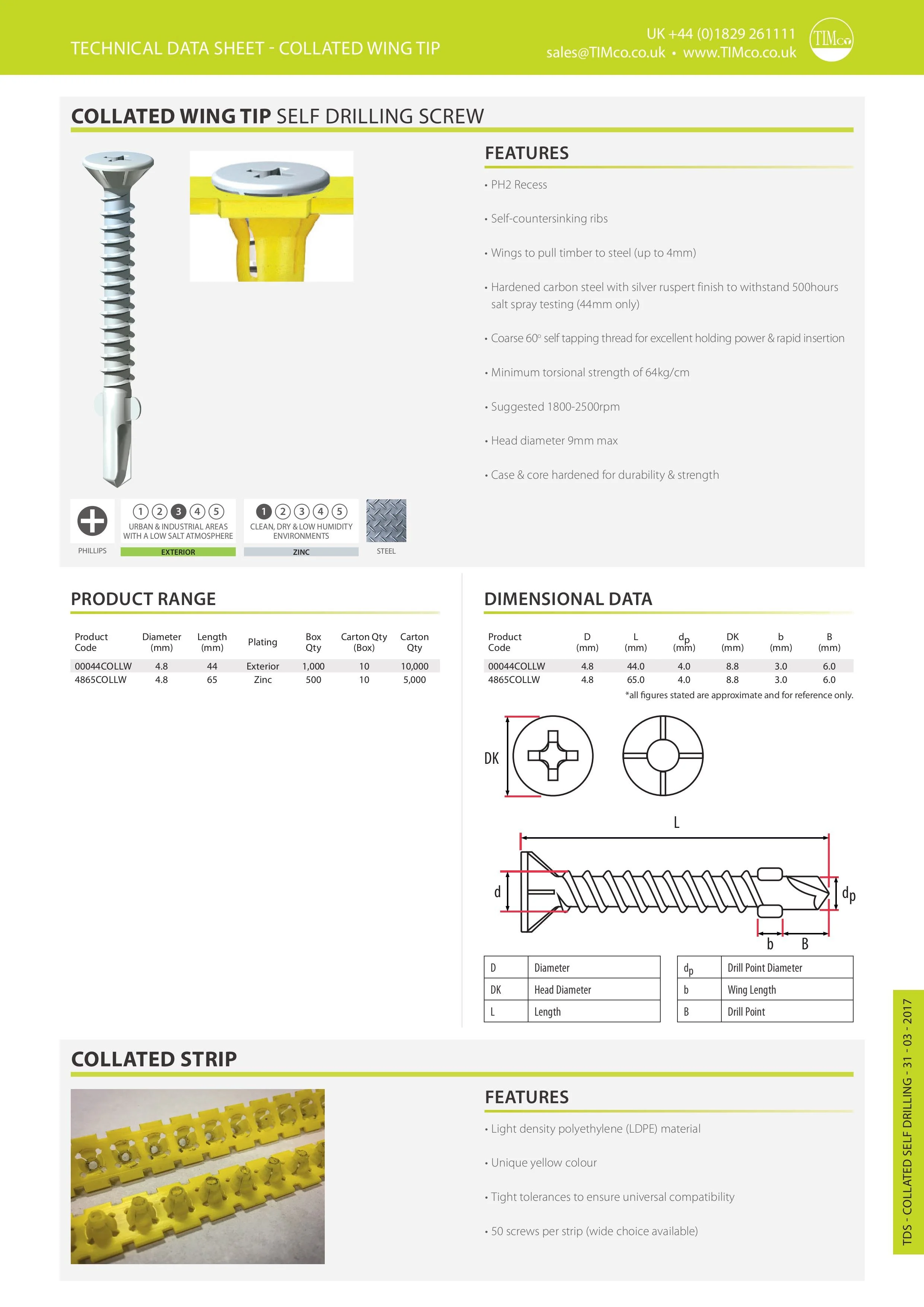

Technical data sheet for collated wing tip self-drilling screw. Features include PH2 recess, self-countersinking ribs, wings to pull timber to steel, hardened carbon steel with silver rustproof finish, coarse self-tapping thread, and a maximum head diameter of 9mm. Product range displays screws of 4.8mm diameter in exterior zinc coating, sizes 44mm and 65mm, with specifics on box and carton quantities. Dimensional data shows measurements for diameter, head diameter, length, drill point diameter, wing length, and drill point. An image of the collated strip of yellow plastic strips with screws is included, featuring features like light density polyethylene material, a unique color, tight tolerances, and 50 screws per strip.
Technical data sheet for collated wing tip self-drilling screw, featuring specifications, product range, dimensional data, and a picture of yellow collated strip with screws.
